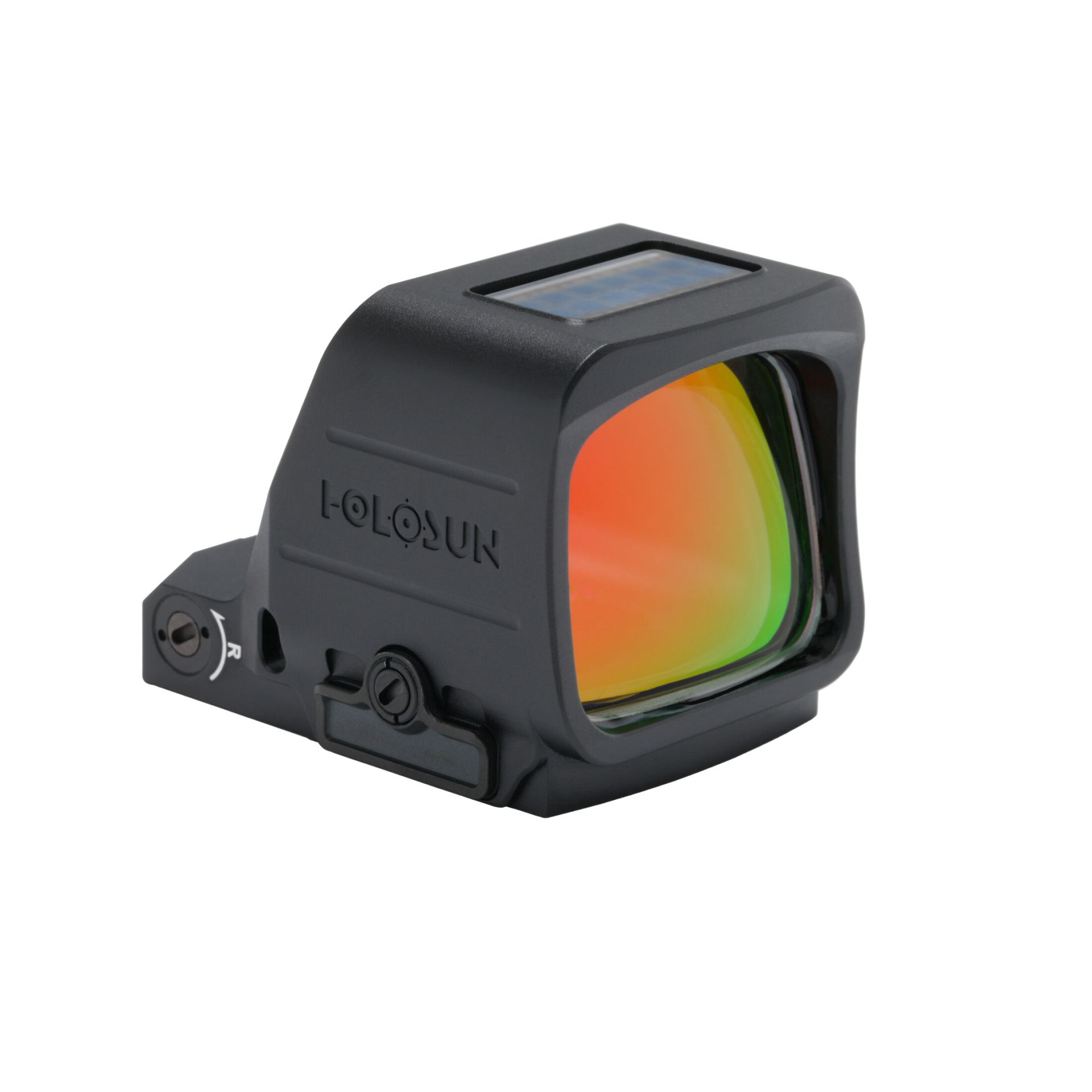

HOLOSUN HS507 Promax

The 507-PROMAX-RD-PRS pairs an enlarged viewing window with a forward-leaning sunshade to reduce glare and maintain a sharp reticle in bright conditions.

Its Performance Reticle System, 7075-T6 aluminum housing, Solar Failsafe, Shake Awake, and side-loading CR1632 battery deliver adaptable aiming and dependable performance in demanding environments.

→ Performance Reticle System (PRS)
Selectable 2 MOA dot with 8 MOA, 20 MOA, and 32 MOA circle options for adaptable performance.

→ Enlarged Competition Window
Large viewing area supports faster target transitions and improved sight tracking.

→ Forward-Leaning Sunshade
Integrated glare reduction helps maintain reticle clarity in bright lighting.

→ Solar Failsafe Technology
Ambient light sensor automatically adjusts brightness and provides backup power.

→ Shake Awake Technology
Motion-activated system powers the optic on instantly while preserving battery life.

→ Side-Loading Battery Tray
CR1632 battery replacement without removing the optic from the firearm.

Features

• Performance Reticle System
  Selectable reticle system featuring a 2 MOA dot with optional 8, 20, or 32 MOA circles for speed or precision shooting.
• Red Super LED Technology
  650nm red emitter delivers a bright, efficient reticle with excellent clarity in varying lighting conditions.
• Expanded Competition Viewing Window
  Large 1.18 × 0.98 inch window provides a wider field of view for faster transitions and improved target tracking.
• Integrated Forward Sunshade
  Forward leaning sunshade reduces glare and preserves reticle clarity in bright shooting environments.
• Solar Failsafe System
  Solar panel provides automatic brightness assistance and backup power in changing lighting conditions.
• Shake Awake Technology
  Motion activation instantly powers the optic on and powers down during inactivity to conserve battery life.
• Manual Brightness with Lockout Mode
  Brightness controls include memory and lockout functions to prevent accidental adjustments during competition.
• Side Mounted Battery Tray
  CR1632 battery compartment allows quick replacement without removing the optic from the slide.
• 7075-T6 Aluminum Housing
  Hard anodized aluminum construction delivers durability and strength for demanding competition use.
• RMR Footprint Compatibility
  Industry standard RMR footprint allows direct mounting to a wide range of optics ready pistol slides.

FUNCTIONS

• Selectable Reticle: Yes
• Solar Power: Yes
• Shake Awake Technology: Yes
• Auto Off: Yes
• Memory: Yes
• Manual Brightness: Yes
• Automatic Brightness: No
• Lockout Mode: Yes

OPTICAL DATA

• Light Source: LED
• Wavelength: 650nm
• Reticle: 2 MOA Dot & 8/20/32 MOA Circle
• Magnification: 1x
• Parallax: No
• Unlimited Eye Relief: Yes
• Multi-Coatings: Yes

ELECTRONIC DATA

• Battery: CR1632
• Battery Life (Setting 6): 50,000 Hours
• Brightness Setting: 8 Daylight & 4 NV
• Removable Battery: Yes
• Battery Location: Side Tray

MECHANICAL DATA

• Housing Material: 7075 T6 Aluminum
• Surface Finish: Anodized
• Housing Color: Black
• Adjustment Per Click: 1 MOA
• W&E Travel Range: ±30 MOA
• Storage Temperature: -40°C~70°C
• Working Temperature: -30°C~60°C
• Submersion: IP67
• Vibration: 5000G

PHYSICAL DATA

• Window Size: 1.18″ × 0.98″
• Body Dimensions: 1.8″ × 1.4″ × 1.38″
• Body Weight: 1.7 oz
